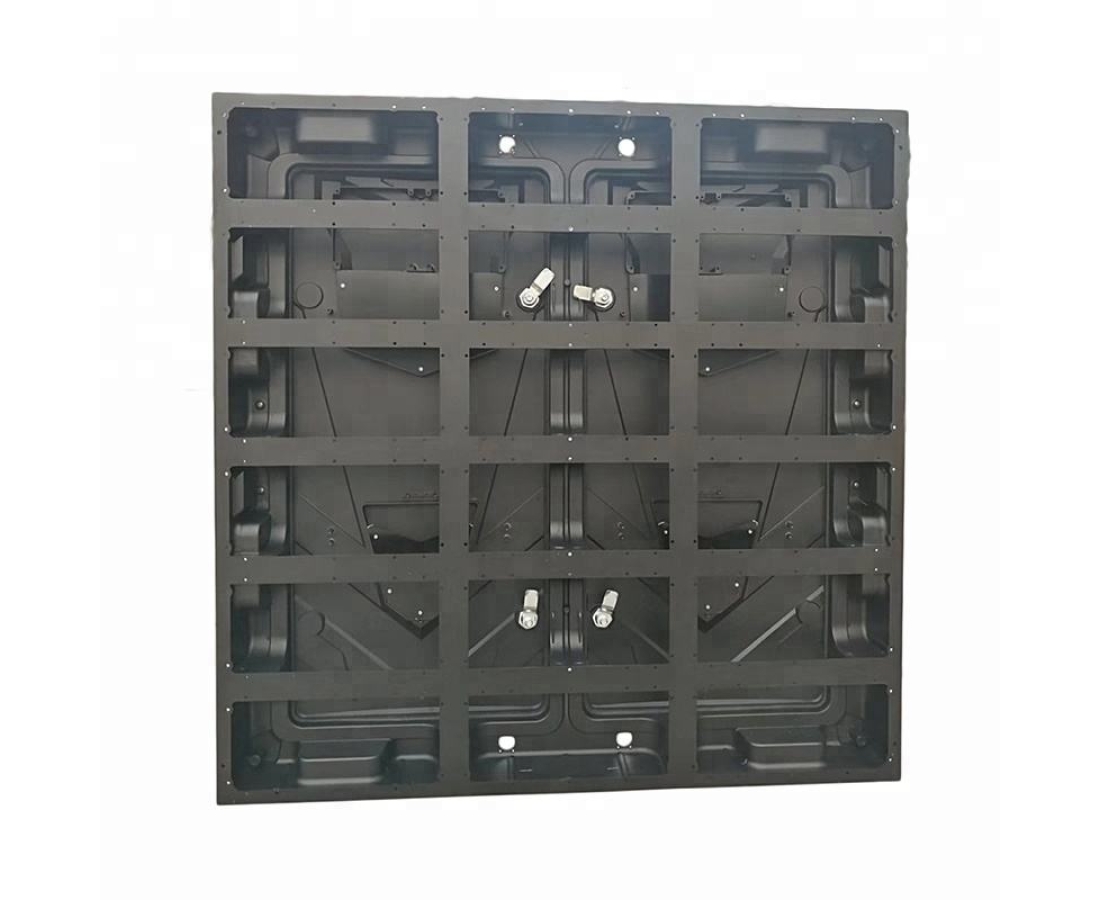

Outdoor 960×960mm Standard LED Display 960 Series Parameter
|
Pixel Pitch (mm) |
P2.5 |
P3.076 |
P4 |
P5 |
P6.67 |
P8 |
P10 (2S) |
P10 (4S) |
|
Model |
P2.5 |
P3.076 |
P4 |
P5 |
P6.67 |
P8 |
P10-2S |
P10-4S |
|
Pixel Configuration |
SMD1415 |
SMD1415 |
SMD1921 |
SMD2727 |
SMD3535 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Density (Pixels/㎡) |
160,000 |
105,625 |
62,500 |
40,000 |
22,500 |
15,625 |
10,000 |
10,000 |
|
Module Resolution (Pixel) |
128x64 |
104x52 |
80x40 |
64x32 |
48x24 |
40x20 |
32x16 |
32x16 |
|

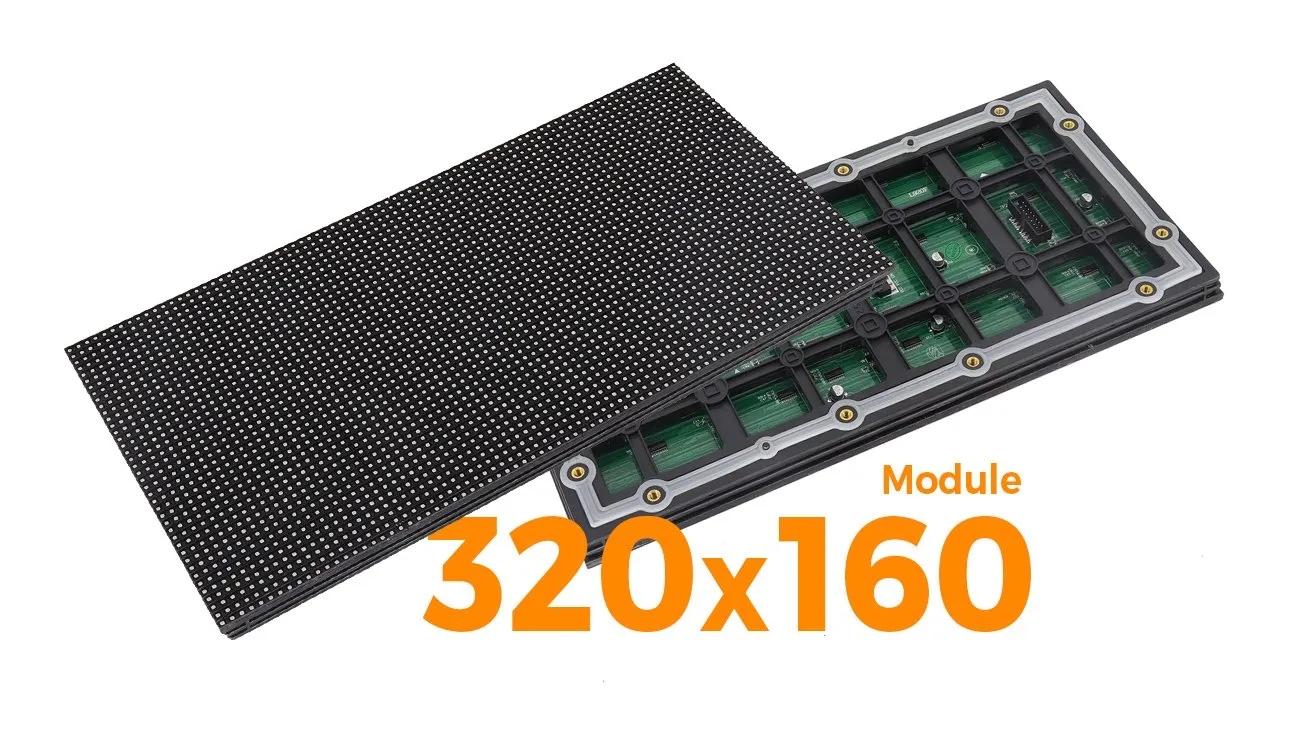

Module Size (mm) |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
|
Driving Mode (Duty) |
1/16 |
1/13 |
1/10 |
1/8 |
1/6 |
1/5 |
1/2 |
1/4 |
|

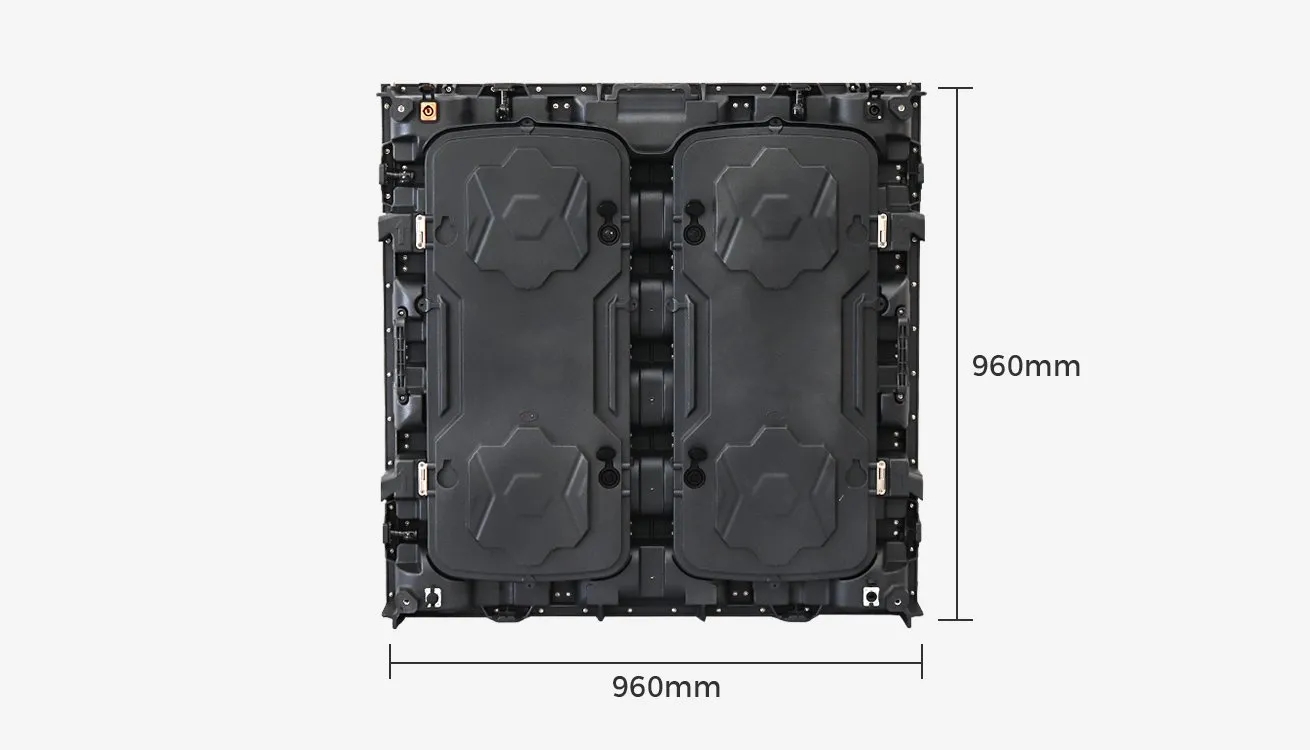

Cabinet Size (mm) |
960x960 |
960x960 |
960x960 |
960x960 |
960x960 |
960x960 |
960x960 |
960x960 |
|
Cabinet Weight (KG) |
29 |
29 |
29 |
29 |
29 |
29 |
29 |
29 |
|
Brightness (CD/㎡) |
≥5,000 |
≥5,000 |
≥5,500 |
≥6,000 |
≥6,500 |
≥6,500 |
≥7,500 |
≥6,000 |
|
Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
|
Gray Grade (Bits) |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
14 |
|
Operation Power |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
|
Max. Power Consumption (W/㎡) |
690 |
786 |
909 |
836 |
892 |
600 |
850 |
540 |
|
Avg. Power Consumption (W/㎡) |
230 |
262 |
303 |
280 |
298 |
200 |
285 |
180 |
|
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
|
Refresh Frequency (Hz) |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
≥3,840 |
|
Working Temperature (ºC) |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
-20～+60 |
|
Lifetime (Hours) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
