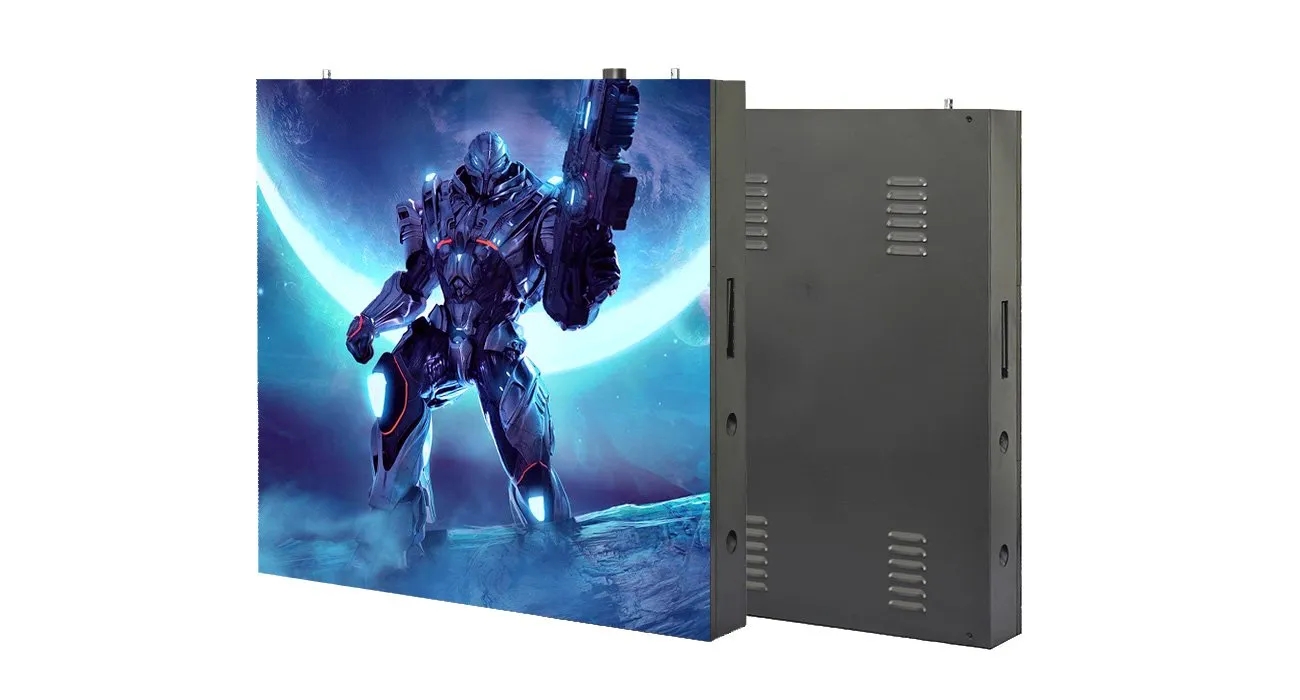

Outdoor RGB SMD Front Maintenance ( Hexagon lock ) LED Display

320 Series Outdoor Front Service LED Display

The SMD Encapsulation technology with high brightness makes the EagerLED Outdoor Fixed LED display
has a Vivid and smoother pictures when in use.

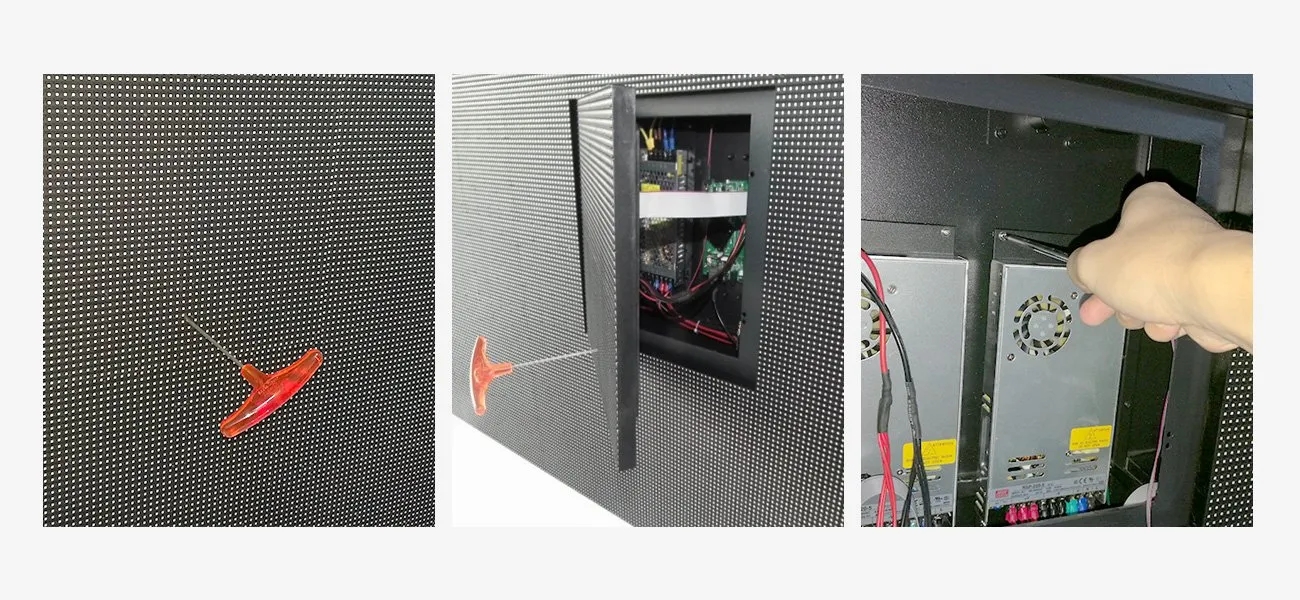

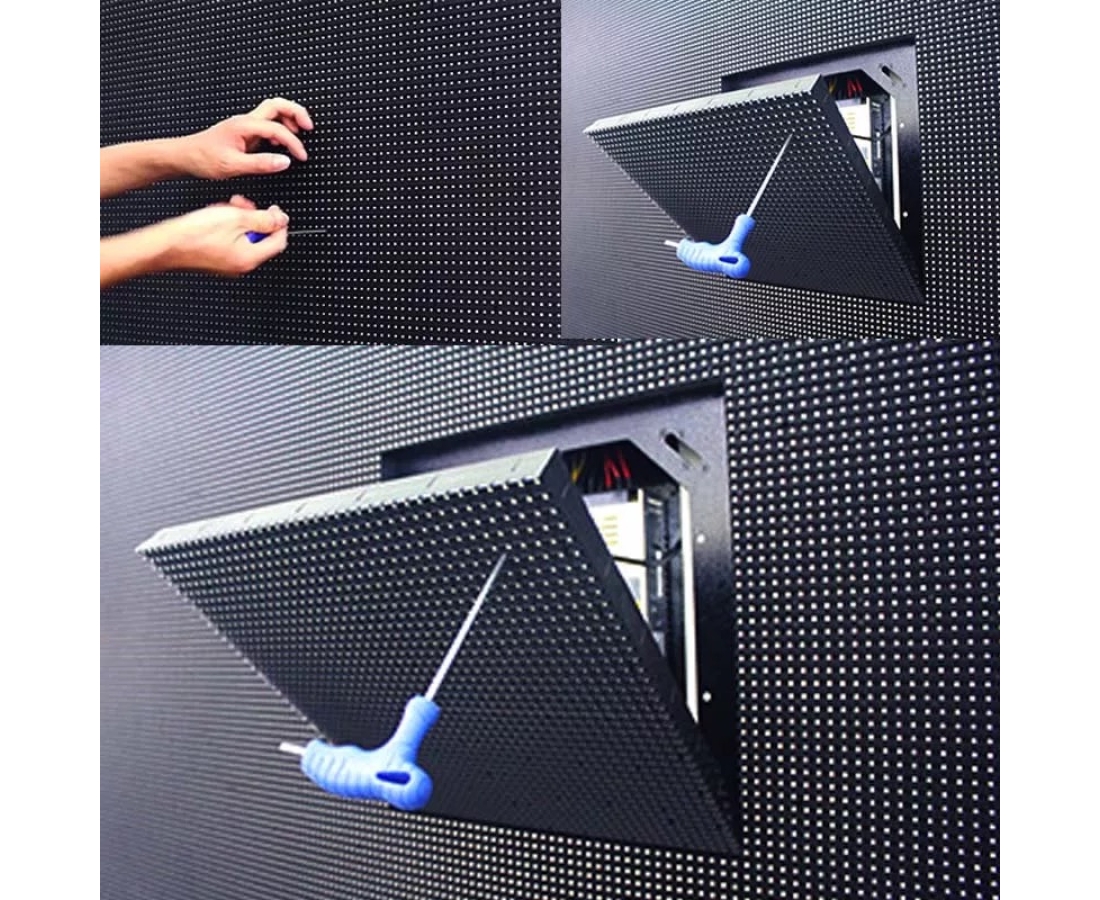

Full Frontal Outdoor Maintenance

Outdoor LED modules, power supplies, receiver cards, hub cards,
and cables are all served at the front end.

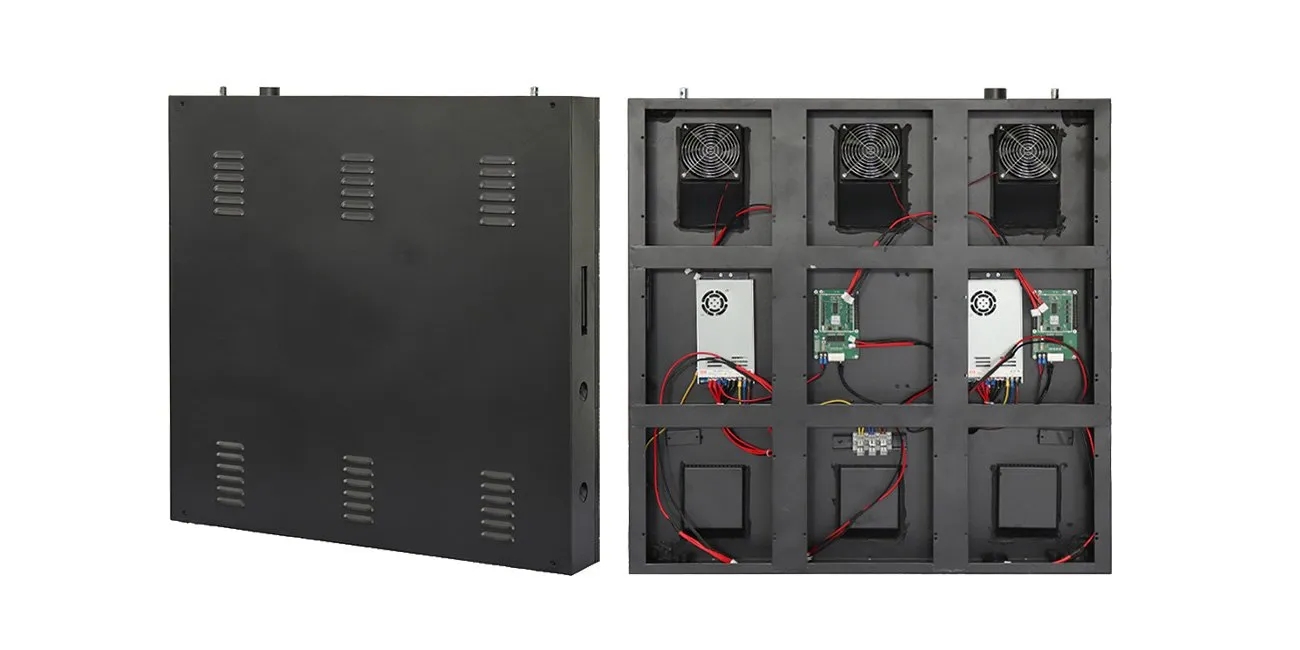

High Efficieny Cooling

There are 3 aerofoil fans in each cabinet to make TP Outdoor Fixed LED display cooling immediately.
entilation volume is 6.6 cubic meter per minute,air circulation 25 times every minute inside the cabinet

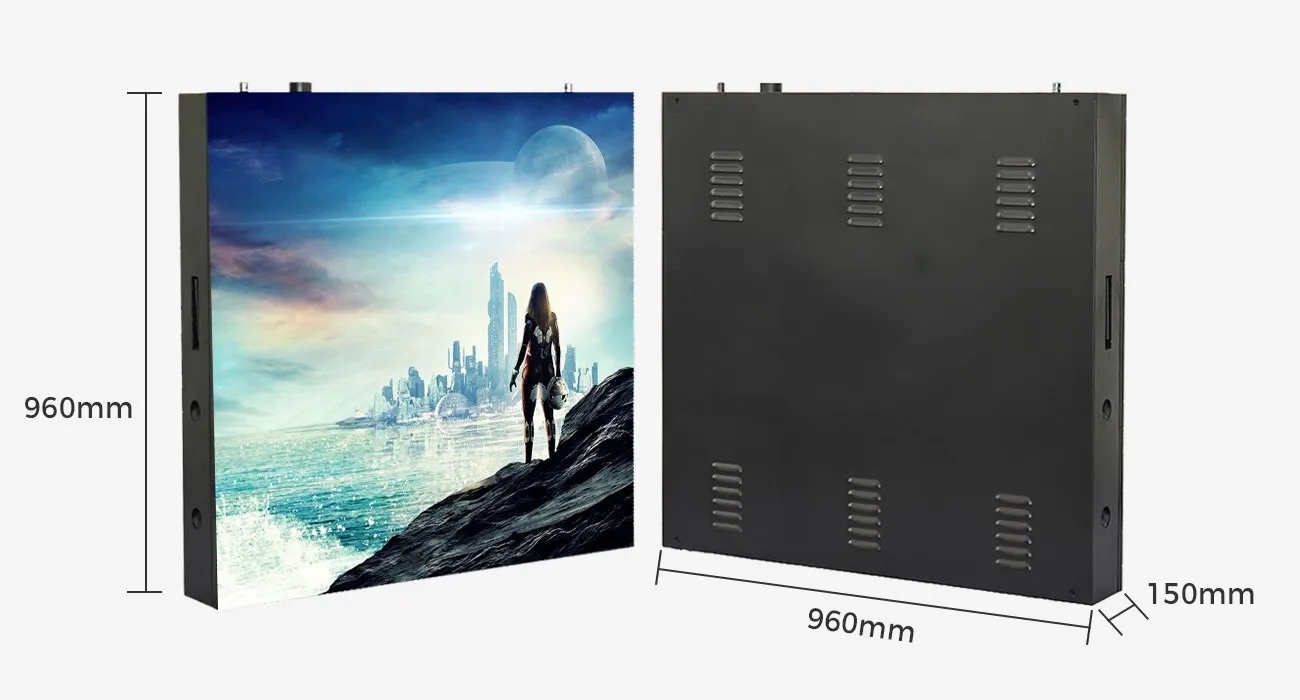

960x960mm Standard Size

The 320 series LED cabinet weighs only 40kg and has a thickness of only 150mm.The cabinet is made of aluminum alloy,
which makes it have higher strength. The compact design of the LED display cabinet makes it very easy to install.

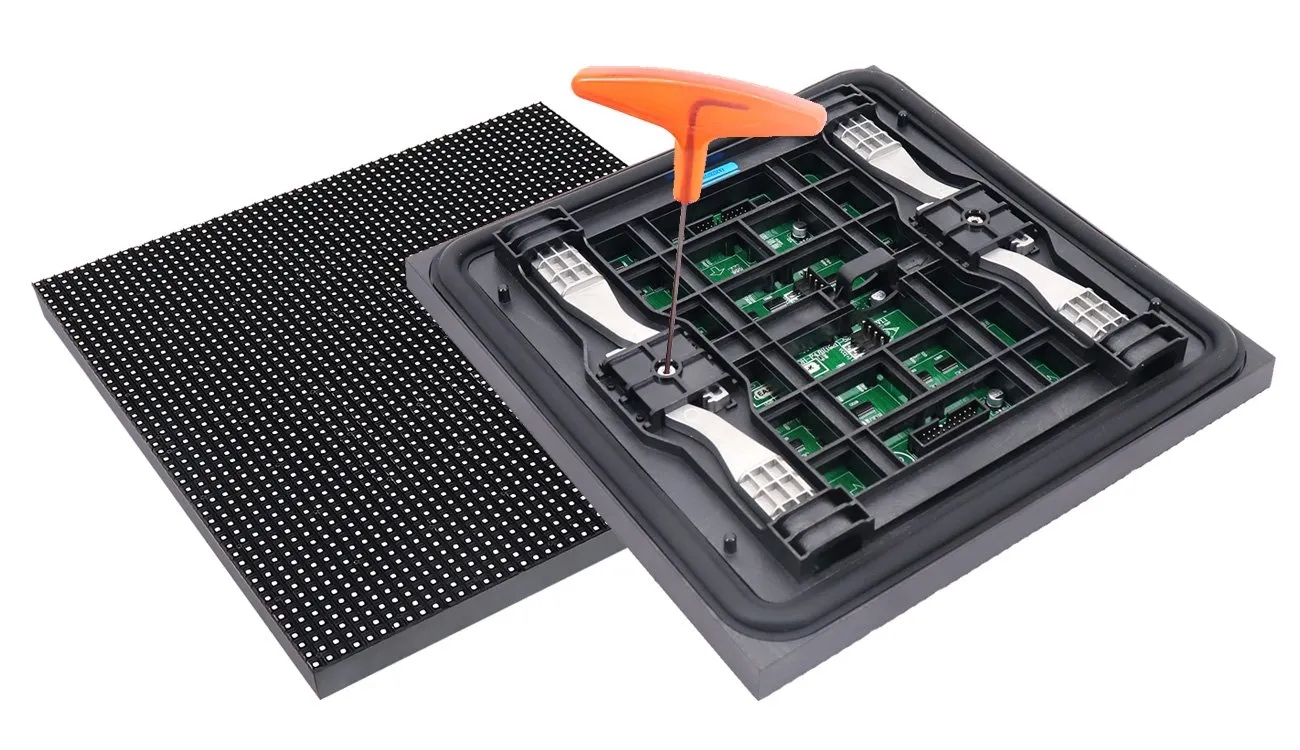

In addition, the Quick Lock feature does not require any technical skills to install and uninstall.

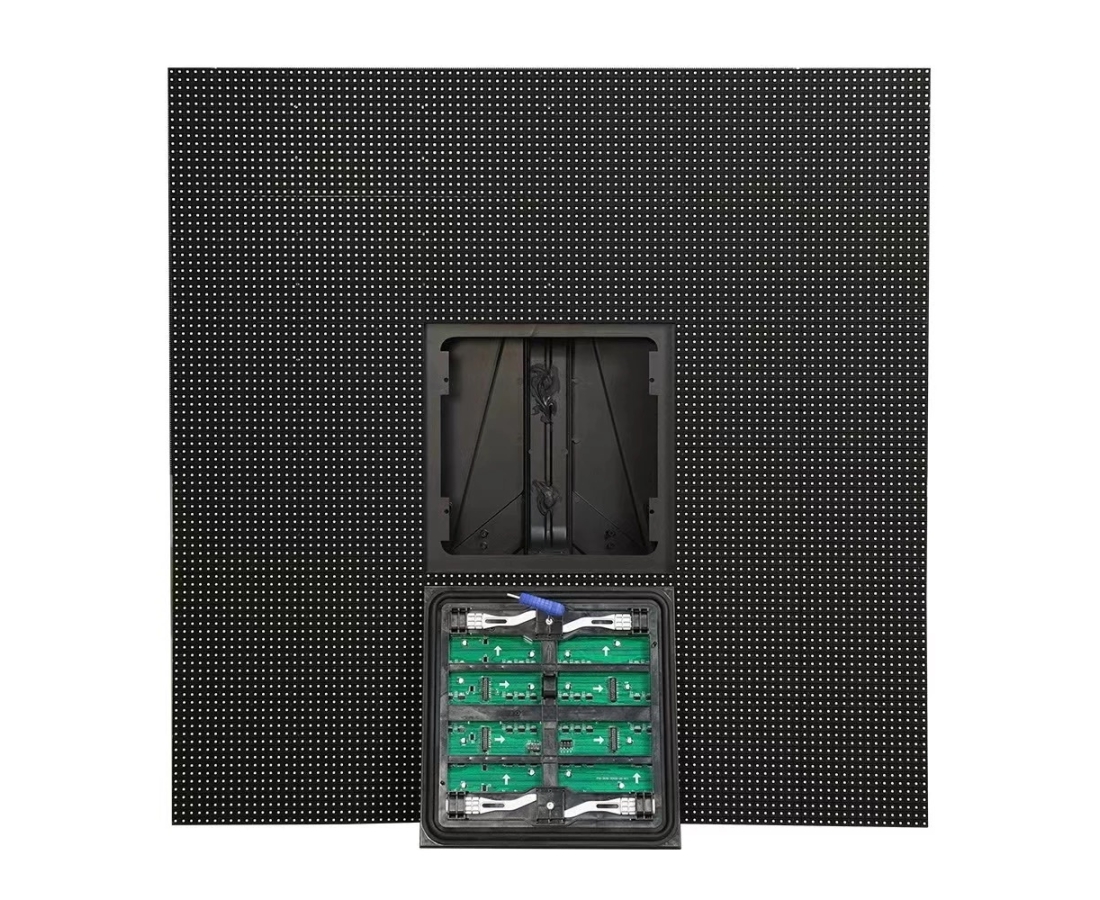

Suitable For 250x250mm Size Modules

standard LED screens can be quickly assembled and maintained. It is also convenient to change the pixel pitch

by simply replacing the modules as they have the same module size and structure

Wide Viewing Angle

Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Outdoor 960x960mm Front Service LED Display 320 Series Parameter

Pixel Pitch (mm)	P4	5.33	P6.67	P8	P10
Model	320-P4	320-P5.33	320-P6.67	320-P8	320-P10
Pixel Configuration	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535
Density (Pixels/㎡)	62,500	35,156	22,498	15,625	10,000
Module Resolution (Pixel)	80x80	60x60	48x48	40x40	32x32
Module Size (mm)	320x320	320x320	320x320	320x320	320x320
Driving Mode (Duty)	1/10	1/8	1/6	1/5	1/2
Cabinet Size (mm)	960x960	960x960	960x960	960x960	960x960
Cabinet Weight (KG)	40.5	40.5	40.5	40.5	40.5
Brightness (CD/㎡)	≥6,000	≥6,000	≥6,500	≥6,500	≥6,500
Viewing Angle (°)	140	140	140	140	140
Gray Grade (Bits)	14	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	806	732	700	900	576
Avg. Power Consumption (W/㎡)	270	245	230	300	200
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000
Protecting Grade	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)
