1.Support regular chips and PWM chips
2.Support static module, any scan mode within 1~128 scan
3.Support data group exchange and data group offset
setting
4.Smart settings, draw points, trace points, etc.
5.Support multi-card cascade, arbitrary order
6.Recommended loading range: 128*768/ 128*1024
|
Model |
R708 |

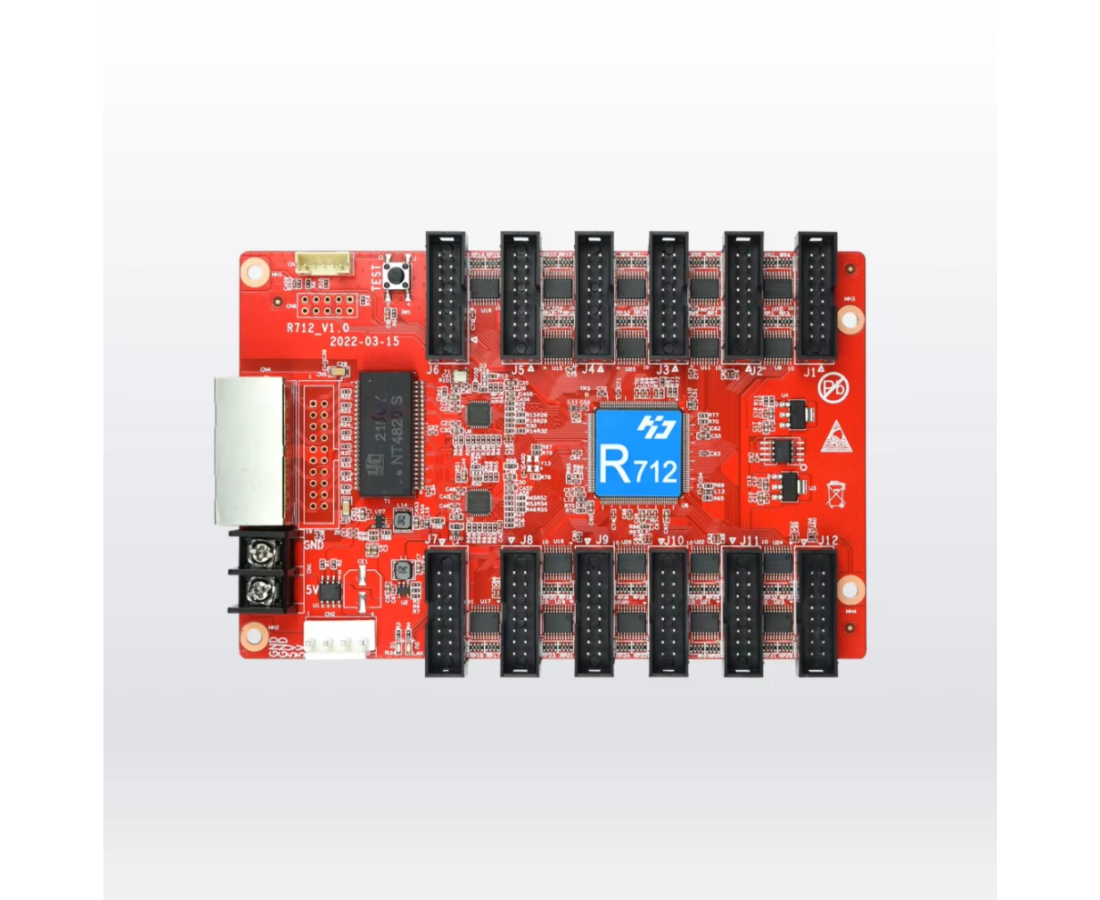

R712 |

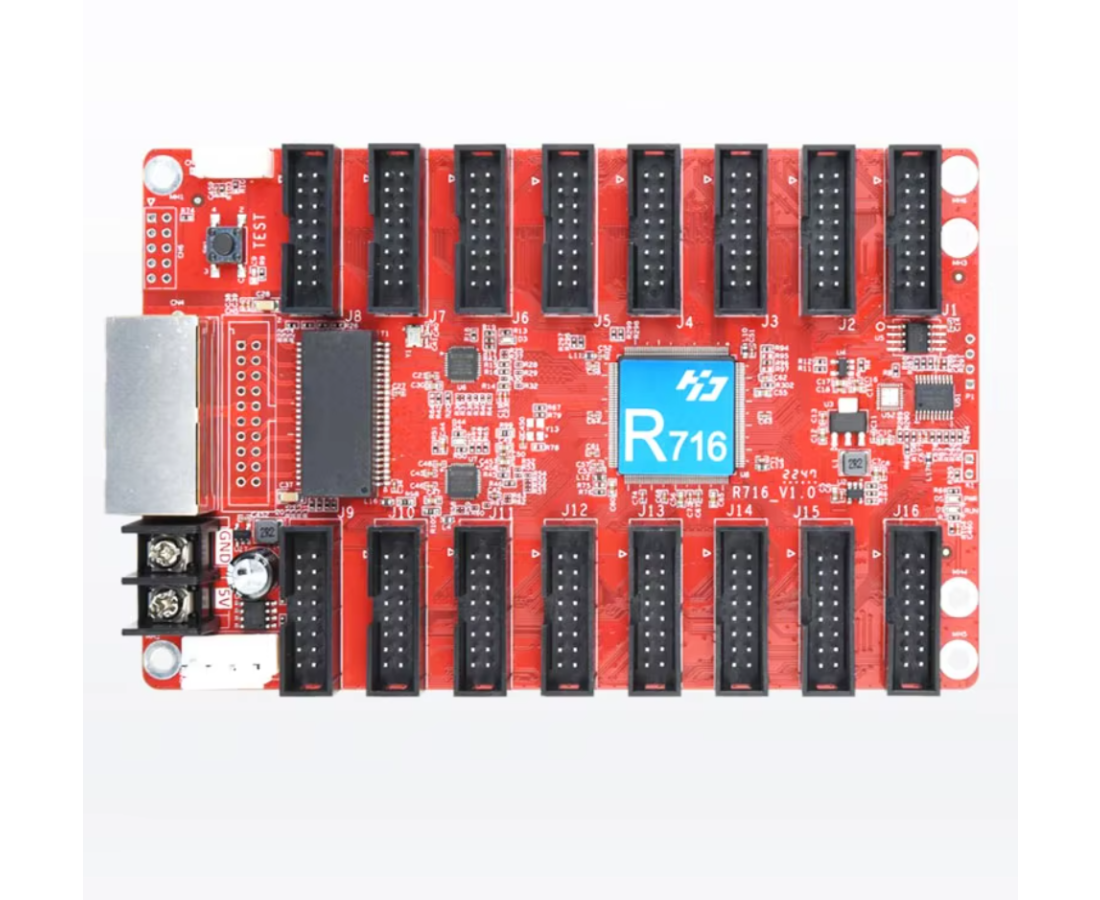

R716 |

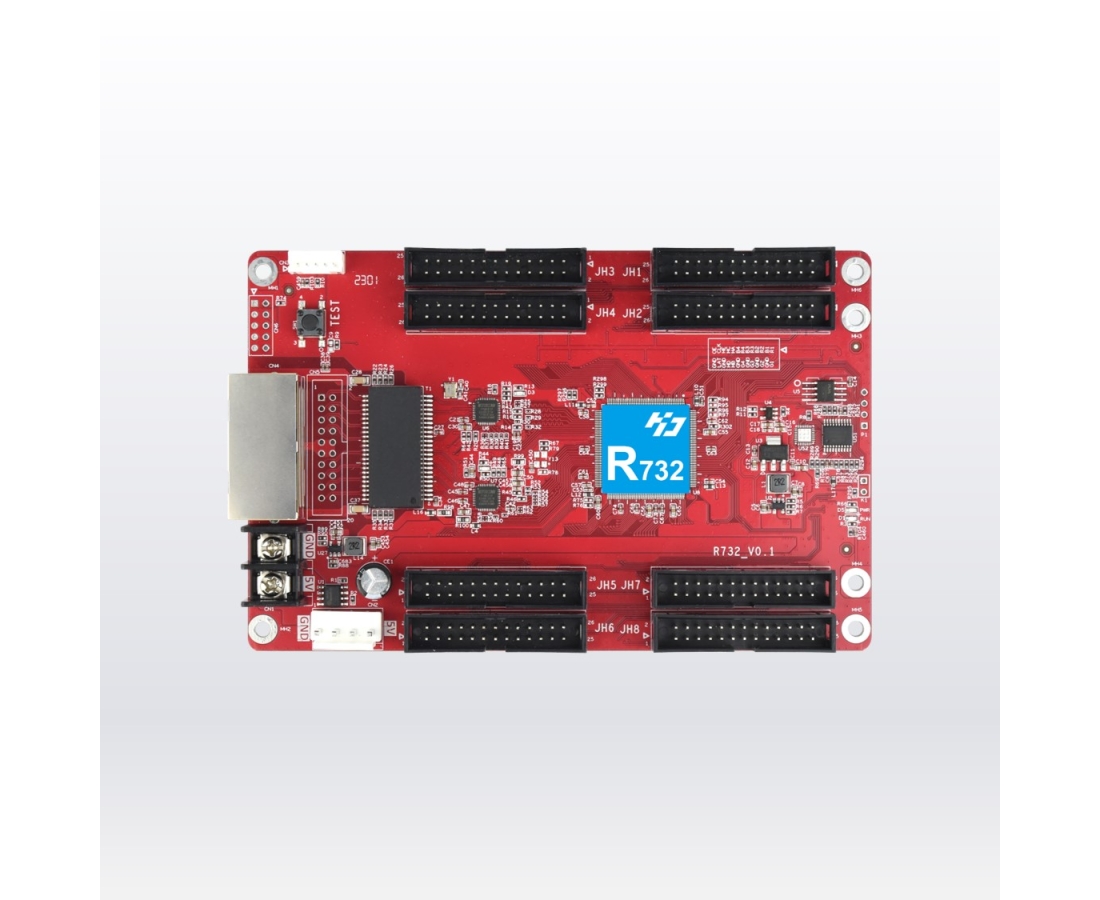

R732 |
|
Loading capacity |
Conventional chip: 128*512 PWM chip: 384*512 |
Conventional chip: 128*1024 PWM chip: 256*1024 |
Conventional chip: 160*1024 PWM chip: 320*1024 |
Conventional chip: 128*1024 PWM chip: 256*1024 |
|
USB Interface |
8×HUB75E |
12×HUB75E |
16×HUB75E |
8×HUB320 |
|
Data output |
16 sets of RGB |
24 sets of RGB |
32 sets of RGB |
32 sets of RGB |
|
Scanning |
Static~1/128 |
Static~1/128 |
Static~1/128 |
Static~1/128 |
|
Model |
HD-R5S |
HD-RB6 |
HD-R507T |
|
Loading capacity |
128*768 |
256*384 |
128*768 |
|
HUB interface |
2×120PIN HUB |
2×84PIN HUB |
4×26PIN HUB |
|
Data output |
32 group of parallel data or 64 group of serial data |
32 group of parallel data or 64 group of serial data |
16/20/24 group of RGB |
|
Scanning |
Static~1/128 |
Static~1/128 |
Static~1/128 |
