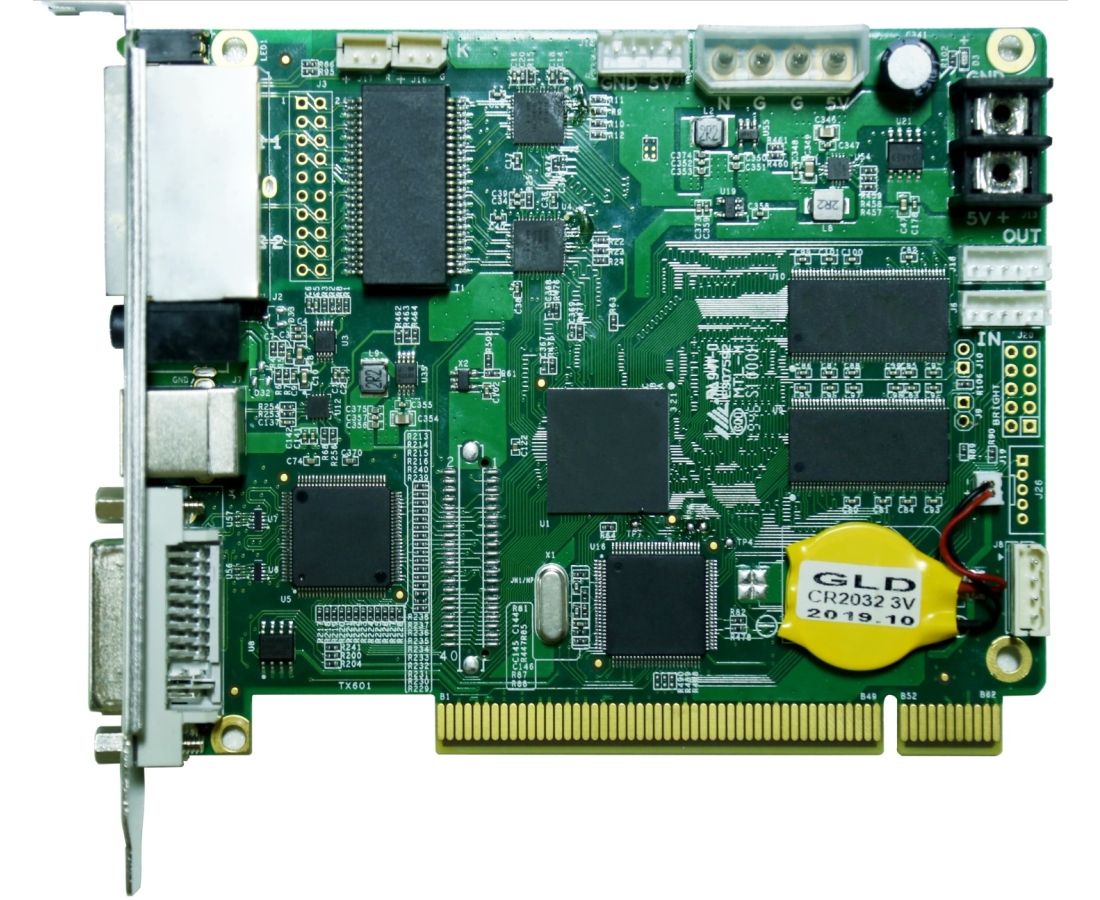

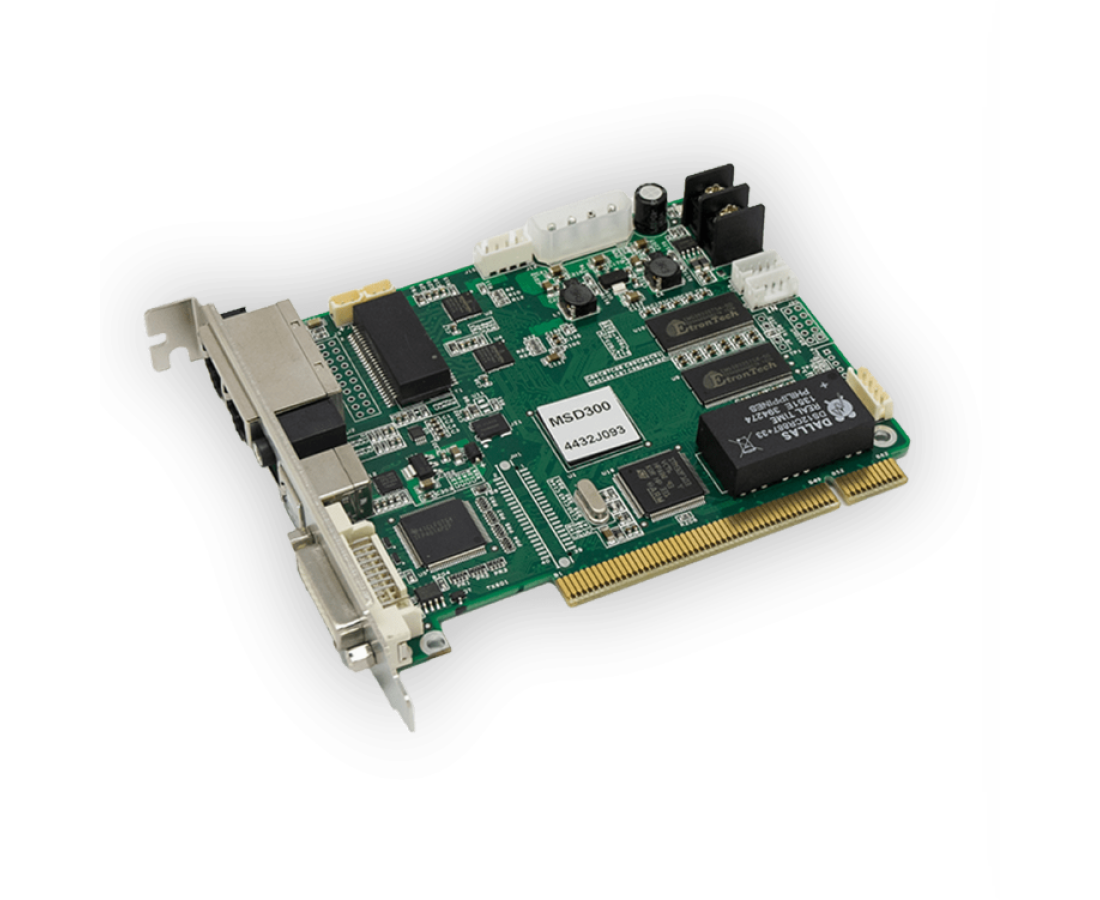

Novastar Sending Card MSD300-1 / MSD600-1

Description

1.DVI video input

2.Audio transmission

3.Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup.

4.USB port control, for cascading and control of multiple units.

1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1970×712@69Hz, 2048×668@60Hz.

CE /  RoHS / EAC / FCC / IC

Features

1.1× DVI video input and 1 × audio input

2.2  × Gigabit Ethernet output

3.1  × light sensor connector

4.Supports the new generation of pixel level calibration technology from NovaStar to provide a fast and efficient calibration process.

5.Supports a variety of video formats.

The MSD600-1 is a sending card supports 1x DVI input, 1x HDMI input, and 4x Ethernet outputs. A single MSD600-1 supports input resolutions up to 1920×1200@60Hz. The MSD600-1 communicates with PC via type-B USB port. Multiple MSD600-1 units can be cascaded via UART port. As a highly cost-effective sending card, the MSD600-1 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Package:

Selling Units: Single item
Single package size: 34X26X7 cm
Single gross weight: 0.8KG
Package Type: padded box ,pls reference the description ,we provide the best service for you
