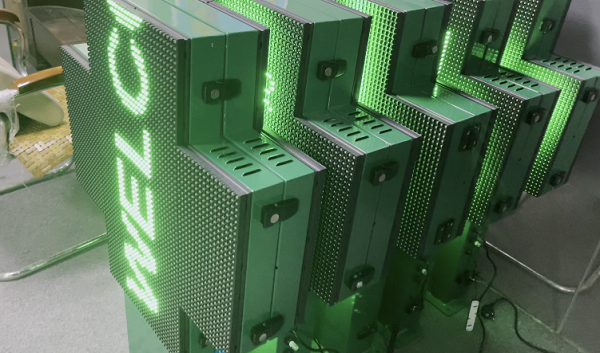

Monochrome LED Pharmacy Cross Controller 31A

1. C-Power 3series card is with 4096-grade grey-scale, support smart setting, easily to set all kinds of LED display.
2. C-Power 3series card and C-Power full series products the same, with the same external protocol and secondary development interface.

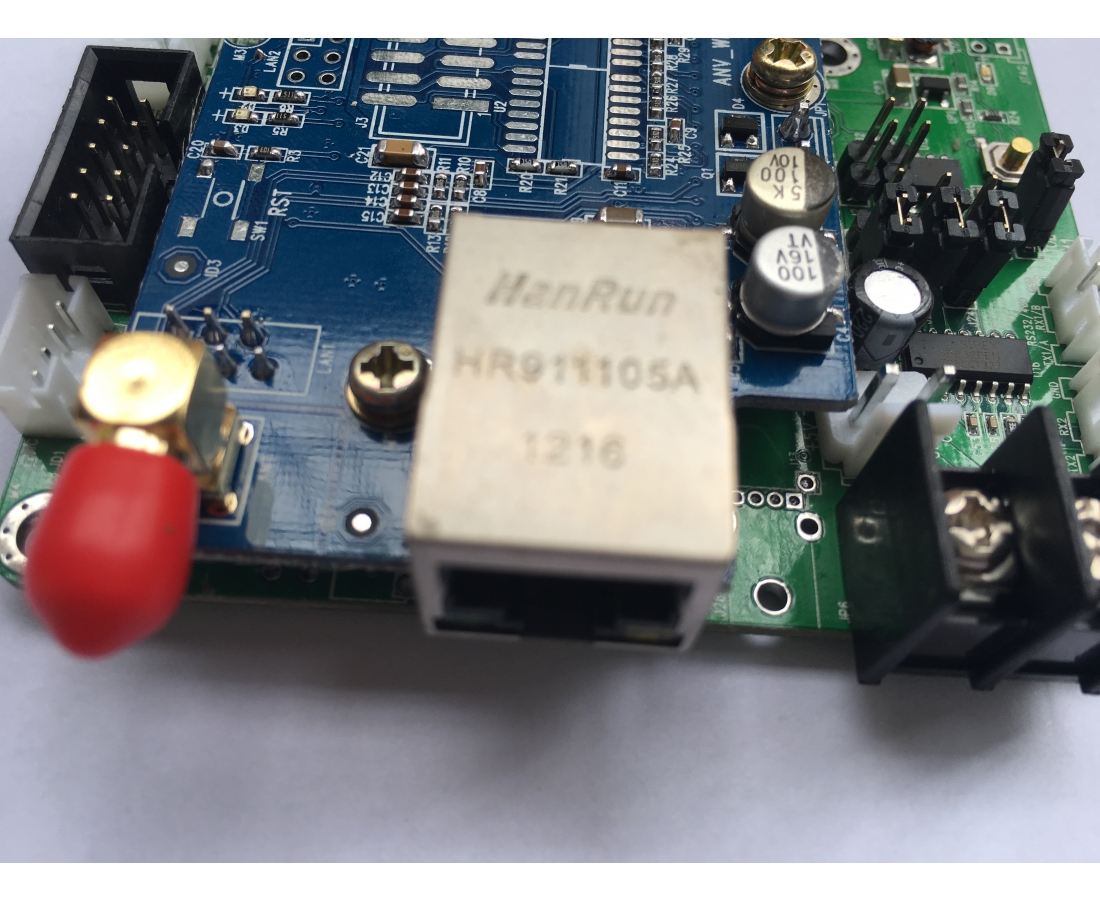

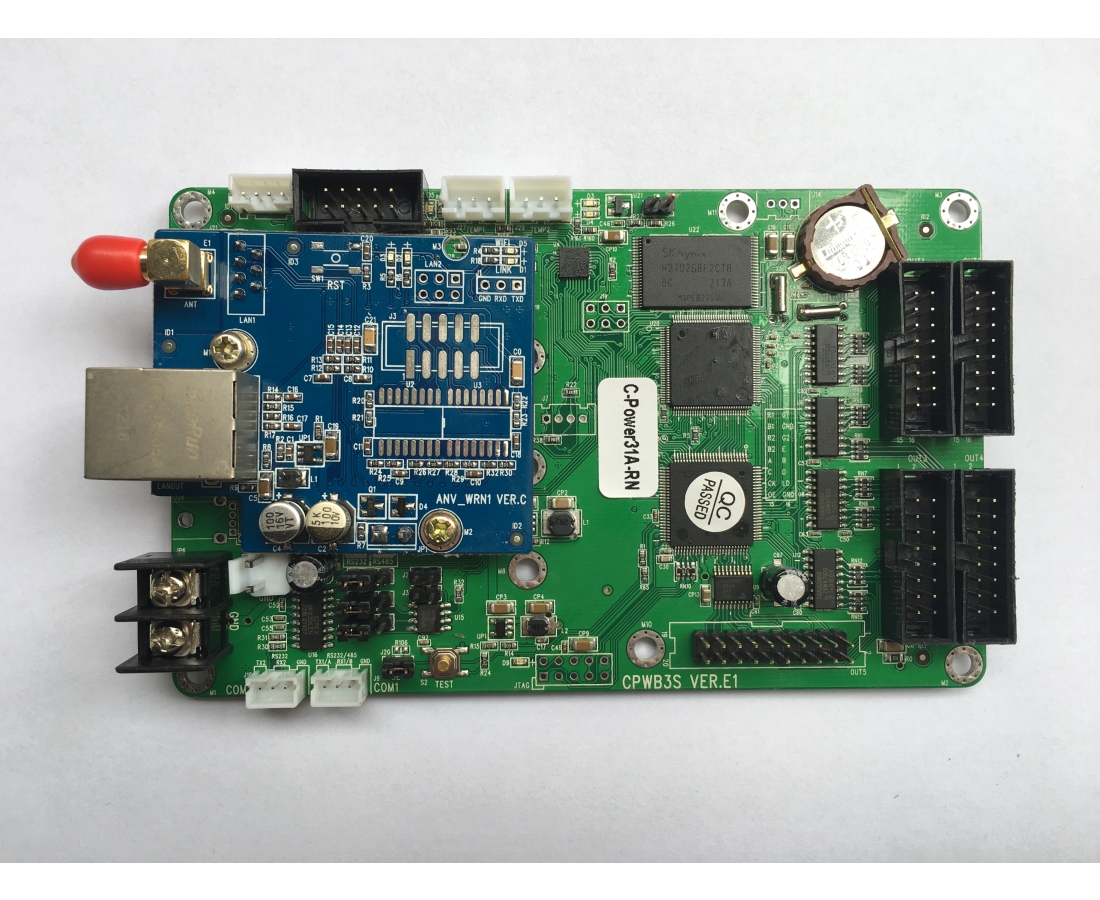

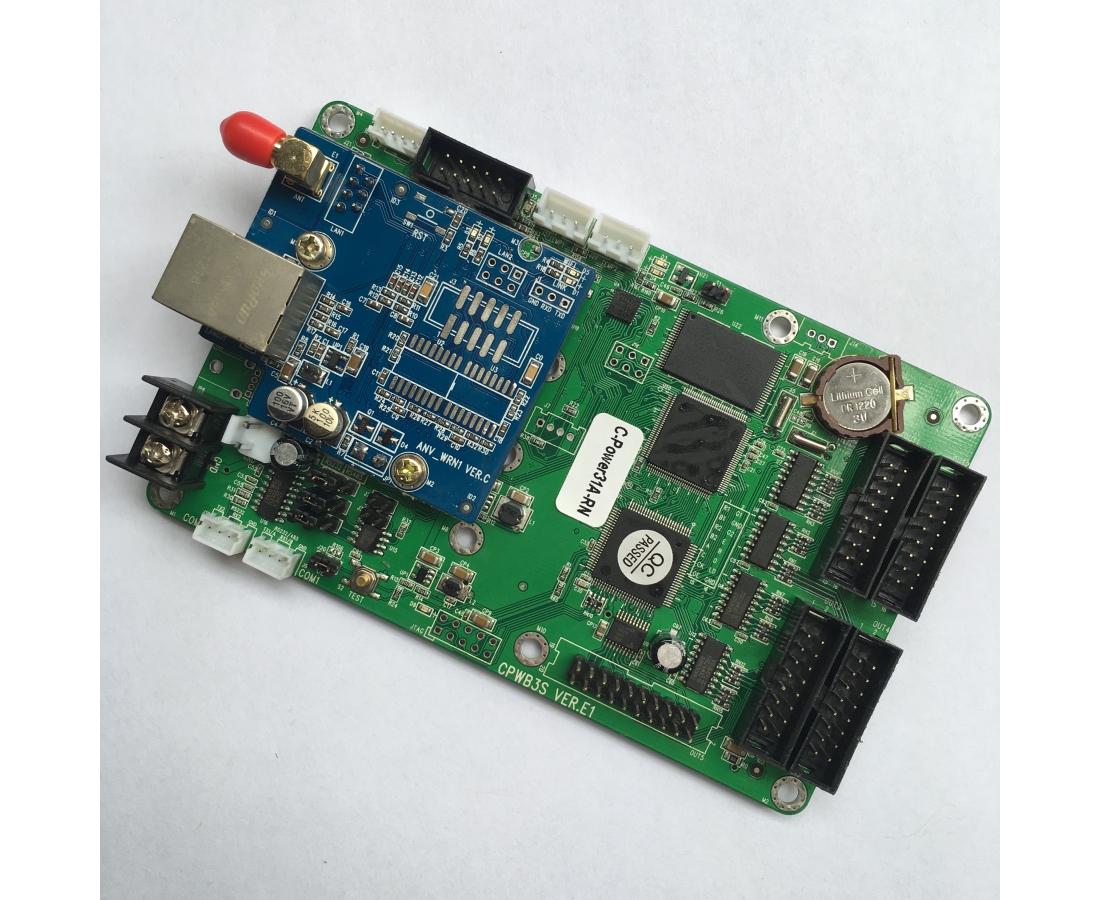

3. C-Power 3series card different versions: C-Power30A(TCP/IP and USB version) ; C-Power31A(WIFI version);C-Power31A-U(WIFI and USB version); C-Power31A-RN(WIFI and TCP/IP version); C-Power32A(GPRS version); C-Power33A(3G version);C-Power34A(4G version)
Product Description
【Feature and Specification】
Control size
 (full , mono/RG color)
320*64pixels, 4096-grade gray scales
Memory
Total size: 256MByte(2Gbit)
Program size: 128MByte
Font library space: 128MByte

Program

All programs are transmitted by compression package, and then decompressed on control card.
Supports video program
Supports animation(swf,gif) , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust
Transparent text and clock program can be edit to cover photo or video
More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute )

Separate window mode

Supports the segmentation of up to ten playing windows for each program.
Supports playing the content in different formats for each playing window.

Affiliated features

With real-time clock (RTC) management and setting, support digital and analogue clock.
Supports environmental data programs like temperature, etc.
Supports sensors installed externally (32-grade brightness)

Font library

128MB font library space
The card can be stored different font library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,

Up to 8 different font libraries can be stored and displayed at the same time
We supply font library edit tools and update tools

Support Hong Kong supplementary character fonts, Hindi

Standard software

LedCenter V5.30 or above

Standard communication mode

TCP/IP and USB version:TCP/IP network  interface、U disk interface
WIFI version:integrate WIFI module
WIFI and USB version:integrate WIFI module、U disk interface
GPRS version:integrate GPRS module(Dual-band or Quad-band)
All version of the standard RS232/RS485 : maximum baud rate: 115200
InDa remote & keyboard

Program list edit and display control by infrared controller or keyboard

External communication components

Supports various wireless communication modes: ZigBee, RF...

Others

Provides customized development interface andits manual.
Provides demonstration program and source codeforcustomized development
Besides, provides “Wireless information issue”version.



【Relevant Download】




Software

Vidieo decoder     Part1Part2Part3Part4Part5Part6
LedCenter  is a professional LED control system supporting software and can support Lumen LED control system
To support AVI video, the decoder should be installed on the computer first.

Operation manual

1.Software operation manual
      manual of LedCenterM V5.0  click to download
2. IrDa remoter control manual  click to download
1.Software operation manual
2. IrDa remoter control manual

Tools and handbook

1. Installation handbook

2. Schematic diagram for installation of the card:

                    click to download

1. Hardware installation and debugging handbook for engineers.

2. Schematic diagram for layout, size and installation position of the ANVB3S card.

Interface handbook for customized development

 API and manuals  click to download

DLL and interface handbook for customized development

Demo program and source code for customized development

 DLL development package click to download

It includes demo program and source codes for customized development.

 External protocol

External communication protocol click to download  External calls communication protocol

  Plug board and gusset plate


 Four HUB75 interface on board:(KB21 interface)
2 G1 N  G2 N  B   N   LD  N  16
1 R1 B1 R2 B2 A  C  CK  OE15

One 20P interface on board(OUT5),can match adapter plate

KB020(HUB08) interface:
2 A  B  C   D  G1  G2 LD CK 16
1 N N NC OE R1 R2  N   N  15

 KB004(HUB12) interface:
2  A   B  C  CK LD R G D 16
1 OE N N   N   N   N N N 15

KB002(HUB40) interface:

2  NC NC NC NC  N   N   N   N16
1  R1  G1 R2  G2 CK LD OE N15
